FORESTRY, WOOD & BIO-MASS EQUIPMENT
When you need equipment specifically designed to handle fragile, challenging or specific and precise size ranges of screening, General Kinematics Forestry, Wood & Bio-Mass Equipment is engineered to perform without fail. Custom engineered for large capacity processing demands or unique 3D sizing applications requiring superior accuracy, GK’s vibratory processing technologies are not your typical off the shelf units.

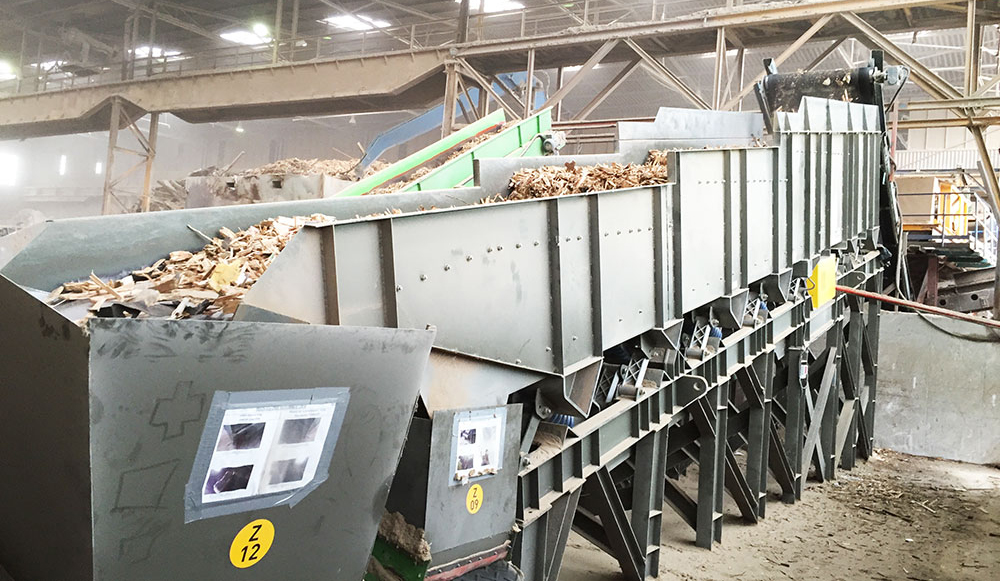

FINGER-SCREEN™ VIBRATORY SEPARATOR FOR WOOD
General Kinematics non-binding FINGER-SCREEN™ Vibratory Separator for Wood has proven to be highly successful in a wide range of applications that are prone to problems common to conventional wire mesh screening surfaces.
The superior performance of vibratory processing and the simple jam-proof movement over our unique FINGER-SCREEN™ Vibratory Separator delivers highly efficient separation and classification. The units vibrating motion spreads material evenly across the deck for maximum separating efficiency. Multiple size separating decks enhance classification while staggered finger positions help to prevent material bypass. Separation performance is enhanced as material freely cascades through the unit — with less “trapping”.
The result: fast, smooth continuous material flow throughout the entire separation and classification process.
The FINGER-SCREEN™ Vibratory Separator is available in standard sizes with widths up to 96 inches (2400mm) and custom sizes engineered based on your application.
Bio-mass Wood Pellets Mulch Green waste Oriented Strand Board (OSB) Landscaping materials
FEATURES:
Unique 3D sizing of wood bark materials.
Vibratory motion evenly spreads material for maximum classification efficiency.
Staggered fingers prevent material bypass.
Cascading material flow helps separate entrapped items.
Unique “cam-out” surface helps eliminate catching and binding.
Tapered fingers gradually classify and free tangled materials.
Open below deck design permits “free fall” of material to lower collecting deck.
Custom-engineered to meet your specific classification requirements.
Modular deck construction permits easy deck replacement.
DE-STONER® AIR CLASSIFIER FOR WOOD
The GK DE-STONER® Air Classifier for Wood creates distinct material separations of heavies from lights for maximum processing and maximum profits.
The DE-STONER® Air Classifier combines vibratory action with air streams to effectively separate high volume production rates up to 5,400 cubic feet per hour (150 cubic meters per hour). The high velocity / low pressure streams fluidize and stratify material according to differential in terminal velocity of particles. Heavy items such as glass, metals, and stones are separated from lighter wood, mulch or pellets fraction. The DE-STONER® Air Classifier is available in standard sizes with widths up to 72 inches (1800mm) and custom sizes engineered based on your application.
The GK DE-STONER® Air Classifier for Wood is designed with a screen section at the entrance of the unit for enhanced sizing and separation. Material is conveyed through DE-STONER® Air Classifier with vibratory action to help liberate, and spread material evenly across the width. The fluidizing zone passes air through the material stream, creating turbulence, and promoting stratification of lights and heavies. Material is then presented to the air knife, where heavies drop through the air stream to the heavies discharge chute below. Marginal density material lands on the adjustable landing plate and recombines with the heavies. The lighter wood fraction is then conveyed over the landing plate and discharged off the end of the DE-STONER® Air Classifier. The ultra light wood fraction is propelled out of the DE-STONER® and recombines with the clean wood fraction.
Hog fuel Bio-mass fuel Wood Pellets Mulch
FEATURES:
The DE-STONER® Air Classifier uses air to separate heavy product from light product.
Environmental hazards associated with water separation is eliminated along with the inherent mess.
Easily adjustable to obtain varying degrees of separation.
Adaptable to a wide variety of products.
Virtually jam-proof. No moving parts come in contact with material flow.
Low energy demand with low HP motor and GK’s proven Two-Mass Design.
Fully isolated design minimizes foundation requirements.
Heavy-duty, built to last construction.

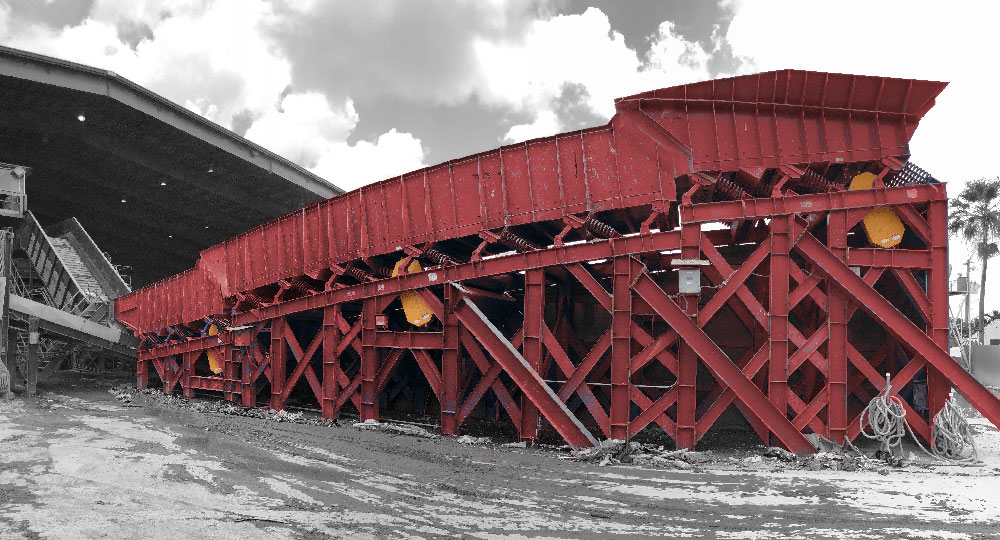

FINGER-SCREEN™ 2.0 PRIMARY SCREEN
General Kinematics FINGER-SCREEN™ Vibratory Separator for resource recycling has become an industry icon and proven in hundreds of applications around the world. Now, General Kinematics has raised the bar again. The new FINGER-SCREEN™ 2.0 Primary Screen takes screening to the next level. Featuring all the benefits of the original, this new design in tandem arrangement, provides a longer displacement that moves traditionally difficult to screen materials.
Great for MSW, C&I and Single Stream applications, the superior performance of vibratory processing with GK’s unique FINGER-SCREEN™ deck delivers highly efficient separation and classification. Like the FINGER-SCREEN™ Primary Screen, FINGER-SCREEN™ 2.0 features an enhanced vibratory action that spreads material across the deck for maximum utilization of the screen area. Tapered finger designs along with unique cam-out surfaces and staggered positions help to prevent material bypass. Separation performance is further improved as material freely cascades down the deck with less plugging, trapping, or pegging. The result: continuous, dynamic material flow to optimize separation and classification.
The FINGER-SCREEN™ 2.0 boasts more energy, faster travel rate, and a higher lift for challenging materials including garbage bags, yard waste, and other lightweight, flexible materials. The longer displacement allows the unit to push through the elastic range of these materials more effectively. Unlike Rotary trommels, which aerate materials, cause blinding and pass long pokers with a high level of daily cleaning and maintenance requirements, FINGER-SCREEN™ 2.0 separates materials based on 3D sizing with minimal blinding and minimal housekeeping. When used as the primary screen, FINGER-SCREEN™ 2.0 provides the initial size separation which scalps off any potentially destructive contaminants, allowing the rest of the downstream equipment to operate effectively.
The FINGER-SCREEN™ 2.0 Primary Screen is available in standard sizes with widths up to 96 inches (2400mm) with custom sizes engineered based on your application.
Vibratory motion evenly spreads material for maximum classification efficiency.
Longer displacement to screen traditionally difficult materials.
Staggered fingers prevent material bypass.
The width is unencumbered / open to process larger materials.
FINGER-SCREEN™ 2.0 decks provide 3D sizing of product.
Cascading material flow helps separate entrapped items.
Unique cam-out surface helps eliminate catching and binding.
Tapered fingers gradually classify and free tangled materials.
Custom-engineered to meet your specific classification requirements.
Modular deck construction permits easy deck replacement.

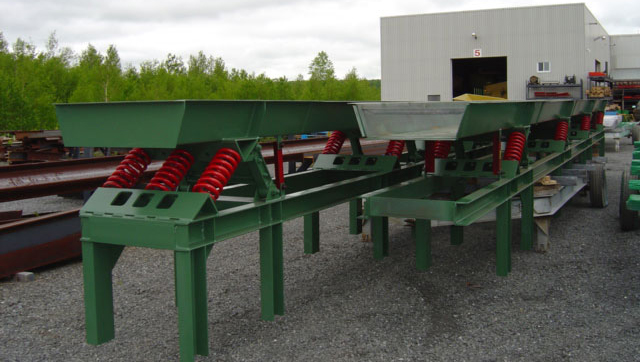

FEEDERS & CONVEYORS FOR WOOD PROCESSING
General Kinematics Vibratory Conveyors and Feeders for Wood Processing offer unmatched ruggedness and reliability.
General Kinematics SYCNRO-COIL® Conveyors for Wood Processing are available in infinite lengths and custom built for your specific application. Technically advanced vibrating conveyors are a tradition at General Kinematics. No matter how difficult your application, chances are we have solved a similar material flow problem — not only for materials that need to be moved, but a number of processes along the way, including separating, screening, classification, distribution, sorting, inspection, metals removal and more. Travel can be up, down, or all around your facility with Wood Vibrating Conveyors.
General Kinematics PARA-MOUNT II® Feeders for Wood Processing are available in standard or custom engineered designs for metering, evenly distributing, and metals removal. GK Feeders will last you a lifetime.
Available in direct drive or Two-Mass designs depending on your application.
Vibratory conveyors can be counter-balanced to reduce vibratory transmission into surrounding structures.
Customized troughs can screen, elevate, or more.
Available in infinite lengths and widths.

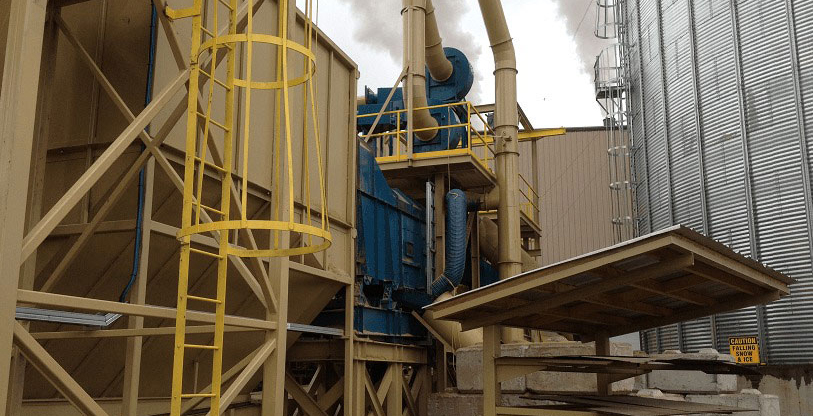

VIBRATORY FLUID BED DRYERS
General Kinematics Vibratory Fluid Bed Dryers are unmatched in bulk processing performance. Each Fluid Bed Dryer is custom engineered to match your specific process needs based on: temperature limitations, moisture requirements, and volatile organic compound (VOC) emissions. Custom engineered with a variety of options makes GK Fluid Bed Dryers a versatile part of your process operations.
Capable of continuous or batch processing, GK Fluid Bed Dryers are designed to dry at low temperatures and to eliminate scorching, charring or burning materials, thereby reducing fire hazards associated with traditional drying techniques. GK Fluid Bed Dryers utilize vibratory agitation while passing a process gas through the material bed to suspend the material in a fluidized state. This increases available material surface area, allowing a faster and complete processing of your material.
Contact GK for the complete drying package to increase your throughput while enhancing your product quality.
GK Vibratory Fluid Bed Dryers are capable of drying at low temperatures.
Reduce fire hazards associated with traditional drying techniques.
Engineered in optimal sizes to maximize your process throughput.
Fluidized beds can cool, dry, heat, and more.
Stainless steel, nickel alloy, and carbon steel construction available.
Adjustable weir assemblies for variable fluidized bed depth.
