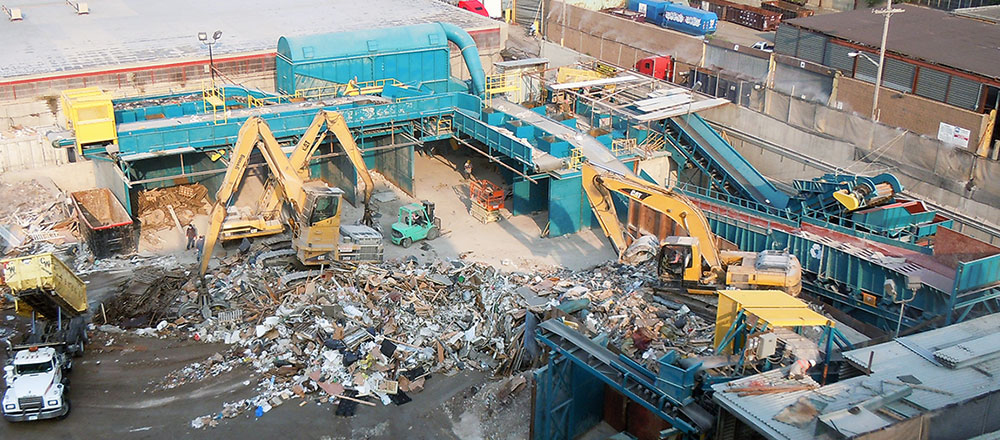

CONSTRUCTION & DEMOLITION (C&D) RECYCLING SOLUTIONS
With over one hundred pieces of equipment operating in more than fifty facilities around the world, General Kinematics is a proven leader in the engineering and manufacturing of Construction & Demolition vibratory sorting equipment. The heart of all our sorting systems center around our proven separation technology, which uses vibration and air classification to separate materials efficiently and accurately. Known for durability and reliability, GK’s equipment is rugged enough to withstand countless hours and tonnages of consistent processing – with minimal maintenance.
CD-EXPRESS® RECYCLING SYSTEMS
The CD-EXPRESS® from General Kinematics is a low cost, entry level recycling system designed for highly effective recovery of Construction & Demolition (C&D) commodities. The CD-EXPRESS® system is designed to process up to 150 yards per hour (115 m3 / hr.) for separation of a variety of C&D materials. The heart of the system begins with GK’s vibratory FINGER-SCREEN™ Primary Screen followed by a picking line.
As your inbound material grows, so can your recycling system. With CD-EXPRESS®, you have the ability to expand your system.
Expansion includes a larger GK FINGER-SCREEN™ Primary Screen, secondary screens, additional pick station, DE-STONER® Air Classifier, and transfer belts. Thereby converting your single line CD-EXPRESS® to a dual line sorting system.

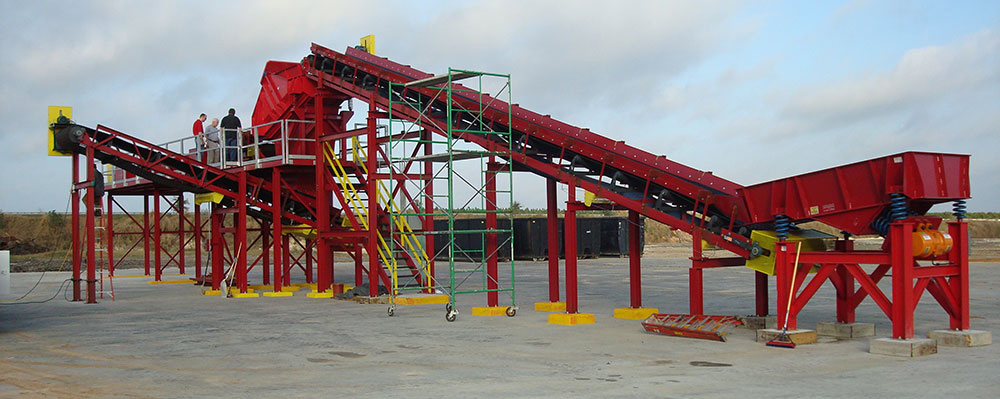

Entry level system with a small, effective footprint to get you up and running.
Recovery of:
Wood. Used as fuel or converted to landscape mulch
Concrete, bricks, rock and aggregate. Reused as construction fill or recycled into new concrete.
Dirt and fines. Accepted as landfill cover.
Metals, ferrous and nonferrous. Sold as valuable scrap.
Cardboard. One of the higher valued commodities.
Plastics. Depending on the markets.
Future commodities… System flexibility to allow for potential market shifts.
General Kinematics FINGER-SCREEN™ Primary Screen for separating minus sized material from overs.

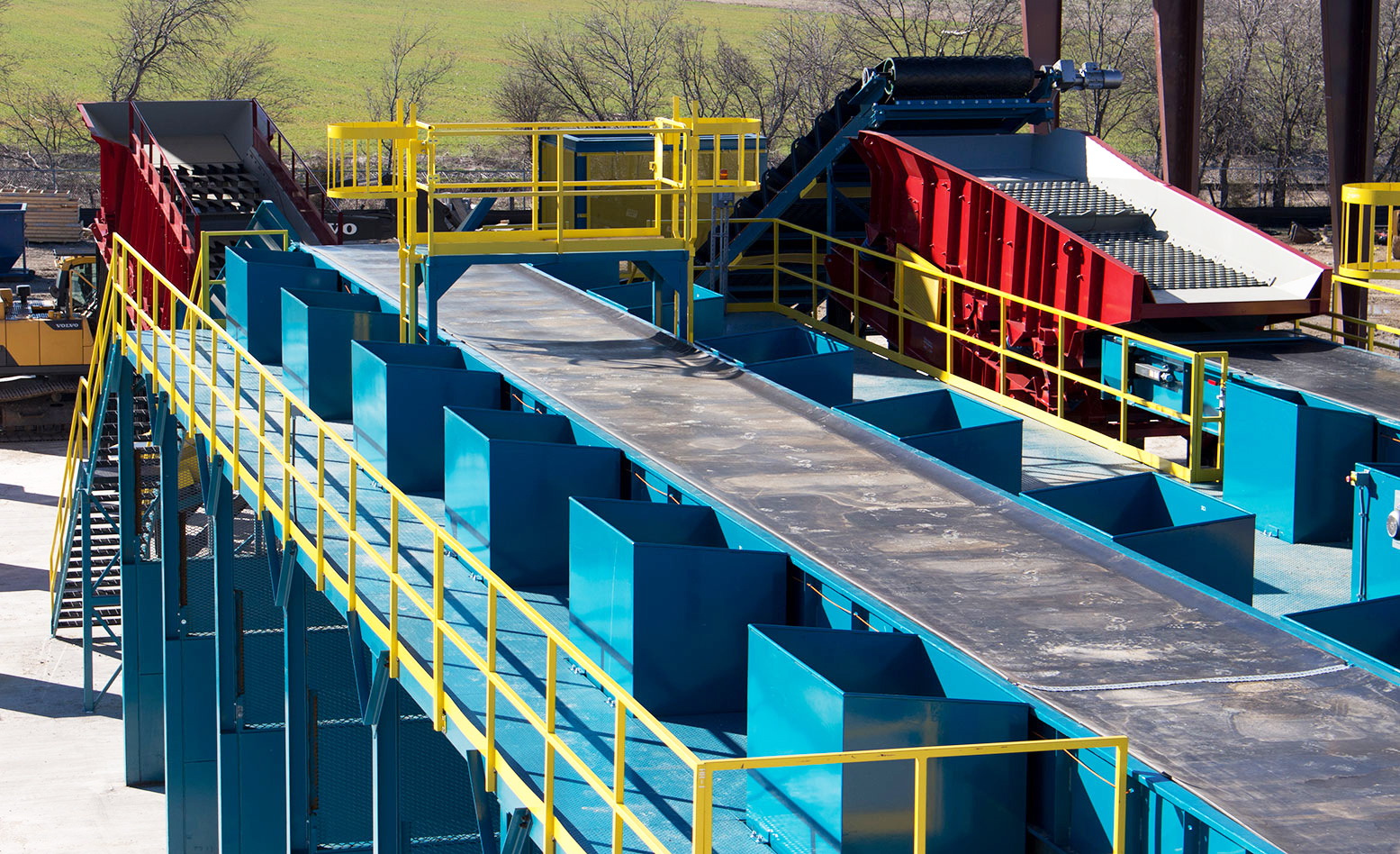

Heavy-Duty pick belt and sorting bins.
Low feed system: Low feed system includes vibratory feeder and inclined belt to enable system loading with front end loader or skid steer.
Optional platform canopy: Protect your workers from weather and the elements.
Cross belt with magnet: For automated removal of metallics from waste stream.
Engineered for overseas shipping to minimize transportation costs anywhere in the world.

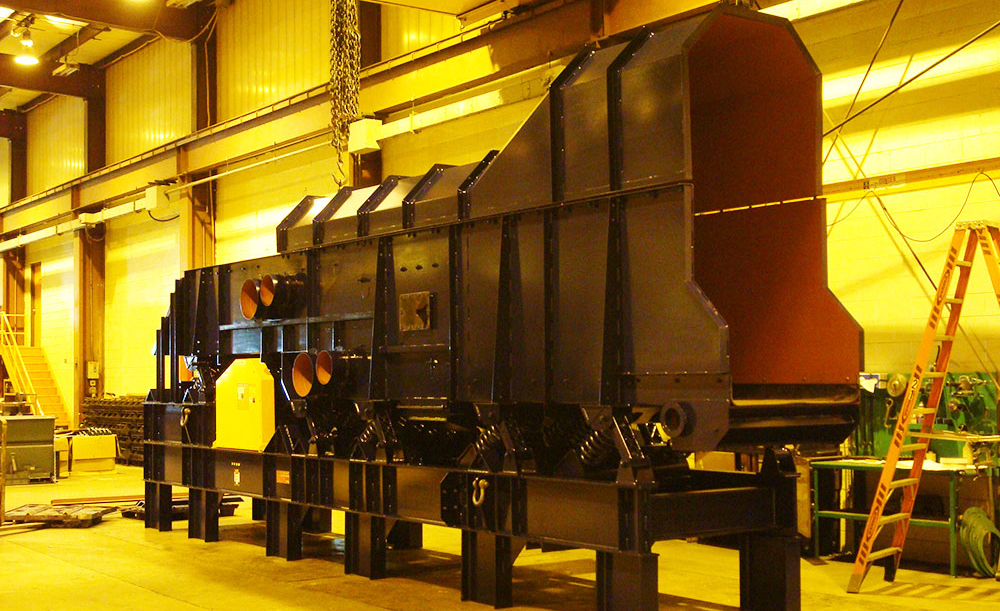

FINGER-SCREEN™ PRIMARY VIBRATORY SCREEN
General Kinematics patented FINGER-SCREEN™ Primary Screen design concept for resource recycling has proven to be highly successful in a wide range of applications that are prone to process challenges common to other types of screening media.
The heart of your sorting system

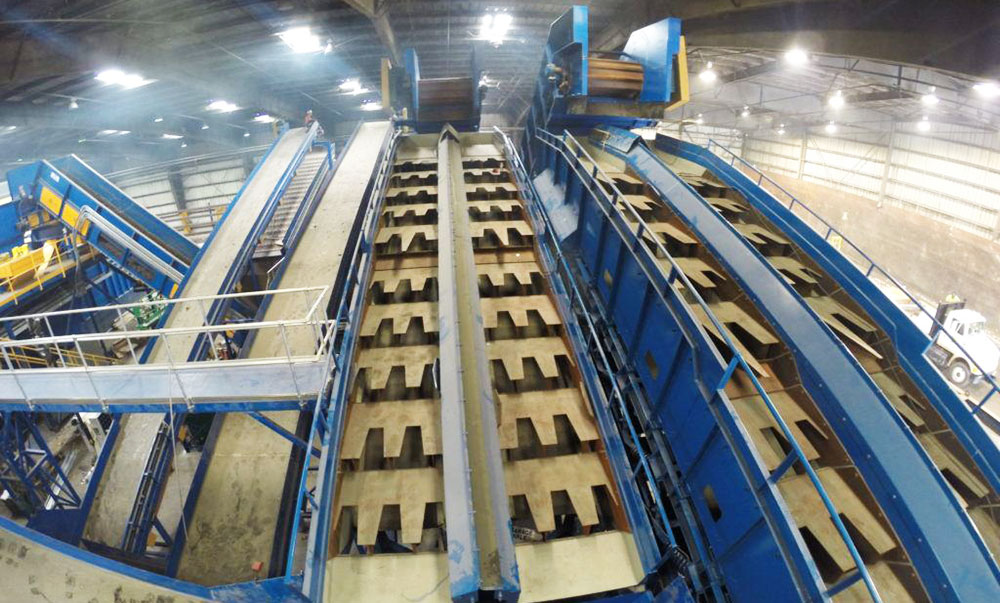

The superior performance of vibratory processing with GK’s unique FINGER-SCREEN™ deck delivers highly efficient separation and classification. The vibratory action spreads material across the deck thereby lowering the bed depth for maximum utilization of the screen area. Tapered finger designs along with unique cam-out surfaces and staggered positions help to prevent material bypass. Separation performance is further enhanced as material freely cascades down the deck with less plugging, trapping, or pegging. The result: continuous, dynamic material flow to enhance and optimize separation and classification.
The FINGER-SCREEN™ Primary Screen is available in standard sizes with widths up to 72 inches (1800mm) with custom sizes engineered based on your application. This vibratory screener is capable of processing high volume production rates up to 750 yards per hour (600 cubic meters per hour).
Vibratory motion evenly spreads material for maximum classification efficiency.
Staggered fingers prevent material bypass.
Cascading material flow helps separate entrapped items.
Unique cam-out surface helps eliminate catching and binding.
Tapered fingers gradually classify and free tangled materials.
Custom-engineered to meet your specific classification requirements.
Modular deck construction permits easy deck replacement.
ROTARY TROMMEL

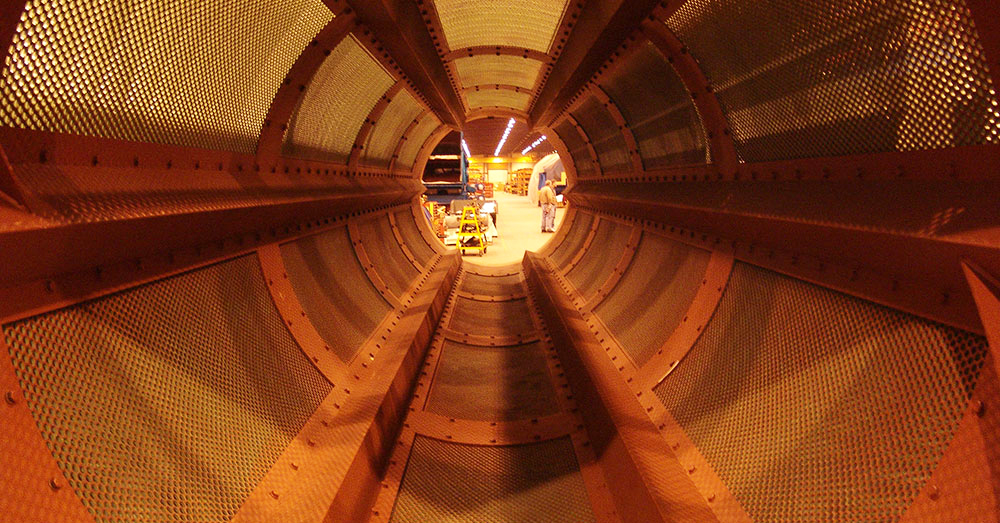

GK Rotary Trommels are designed to efficiently separate and size recyclable material that is prone to sticking or jamming in other secondary separation technology. Heavy-duty drive systems and trommel bodies are easy to clean and easy to maintain. Super-duty trommel designs impart greater impact force to the product and are optimized for materials such as glass recovery and shingle processing. For more information on rotary trommels, contact a GK Recycling Technology expert.
FEATURES:Material infeed can be through either a bag opener for municipal waste or to a bypass feeder for C&D and other non-bagged materials.
Separation is achieved using GK’s FINGER-SCREEN™ for initial separation, a vibratory fines screen, and through the use of GK’s DE-STONER® Air Classifier.
Ferrous separation is also available on the A line, B line, or both.
Find out why recycling professionals around the world are choosing the FINGER-SCREEN™ 2.0 to replace trommels to reduce blinding and downtime!
CD-XL™ RECYCLING SYSTEMS
CD-XL™ Recycling Systems are the perfect way to get started in Construction & Demolition recycling. Systems include primary sorting with a single pick line for low to medium tonnages. CD-XL™ Systems are easily expandable with additional sorting modules and pick lines as your customer base and inbound tonnage increases. The CD-XL™ Recycling System is engineered to process up to 250 yards per hour (191 m3 / hr.) or more.
The heart of the system begins with GK’s vibratory FINGER-SCREEN™ Primary Screen followed by a picking line, typically called the A-Line for the over material. Further processing of the unders is achieved on the B-Line with metals recovery, secondary screening, and GK’s DE-STONER® Air Classifier. Options for the C-Line and D-Line include optical sorting or further fines and lights processing. Contact GK’s Recycling specialists for more information.
FINGER-SCREEN™ Primary Screen for primary sorting of material.

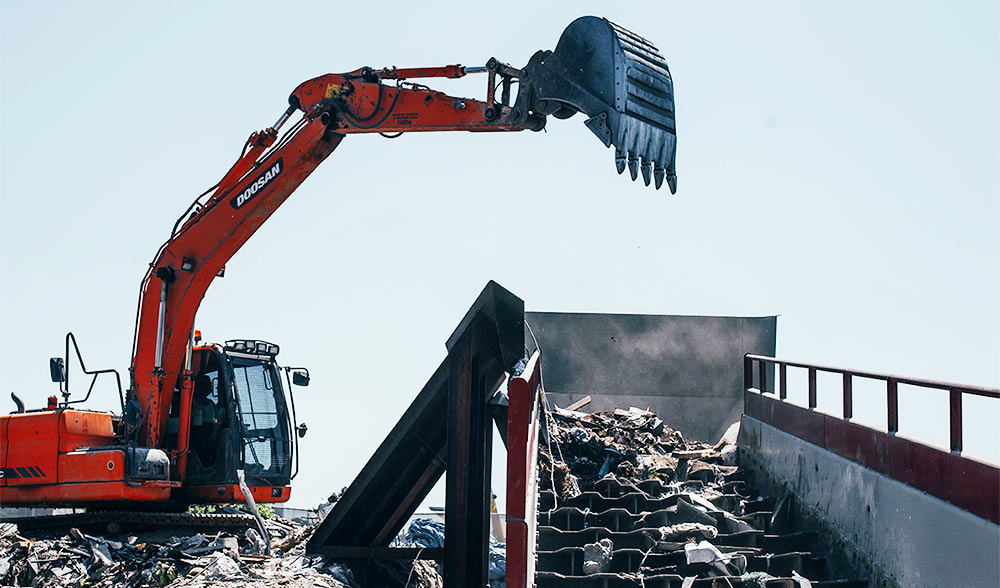

Direct loading on to the screen.

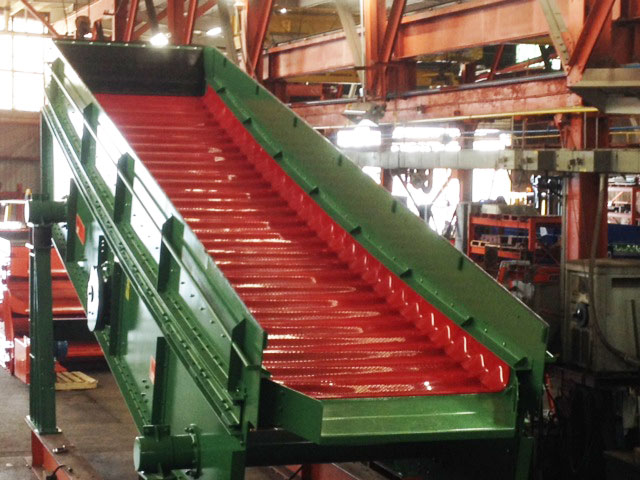

Optional apron conveyor for elevating product to pick station.
Recovery of:
Wood. Used as fuel or converted to landscape mulch.
Concrete, bricks, rock and aggregate. Reused as construction fill or recycled into new concrete.
Dirt and fines. Accepted as landfill cover.
Metals, ferrous and nonferrous. Sold as valuable scrap.
Cardboard. One of the higher valued commodities.
Plastics. Depending on the markets.
Future commodities… System flexibility to allow for potential market shifts
Heavy-Duty pick belt and sorting bins.
Low feed system: Low feed system includes vibratory feeder and inclined belt to enable system loading with front end loader or skid steer.
Optional platform canopy: Protect your workers from weather and the elements.
Cross belt with magnet: For automated removal of metallics from waste stream.
Engineered for overseas shipping to minimize transportation costs anywhere in the world.
CD-XXL™ C&D RECYCLING SYSTEMS
The CD-XXL™ C&D Recycling System is a medium to high tonnage Construction & Demolition (C&D) recycling system designed for highly effective recovery of material. Systems include primary and secondary screening, metals separation, air classification, and primary and secondary pick lines. Each system can be custom designed to meet your recovery objectives. The CD-XXL™ System is engineered to process up to 450 yards per hour (344 m3 / hr.) or more.
The heart of the system begins with GK’s vibratory FINGER-SCREEN™ Primary Screen followed by a picking line, typically called the A-Line for the over material. Further processing of the unders is achieved on the B-Line with metals recovery, secondary screening, and GK’s DE-STONER® Air Classifier. Options for the C-Line and D-Line include optical sorting or further fines and lights processing. Contact GK’s Recycling specialists for more information.
FINGER-SCREEN™ Primary Screen for primary sorting of material.
Direct loading on to the screen.
Optional apron conveyor for elevating product to pick station.
Recovery of:
Wood. Used as fuel or converted to landscape mulch.
Concrete, bricks, rock and aggregate. Reused as construction fill or recycled into new concrete.
Dirt and fines. Accepted as landfill cover.
Metals, ferrous and nonferrous. Sold as valuable scrap.
Cardboard. One of the higher valued commodities.
Plastics. Depending on the markets.
Future commodities… System flexibility to allow for potential market shifts
Heavy-Duty pick belt and sorting bins.
Low feed system: Low feed system includes vibratory feeder and inclined belt to enable system loading with front end loader or skid steer.
Optional platform canopy: Protect your workers from weather and the elements.
Cross belt with magnet: For automated removal of metallics from waste stream.
Engineered for overseas shipping to minimize transportation costs anywhere in the world.
SINGLE KNIFE DE-STONER® AIR CLASSIFIER

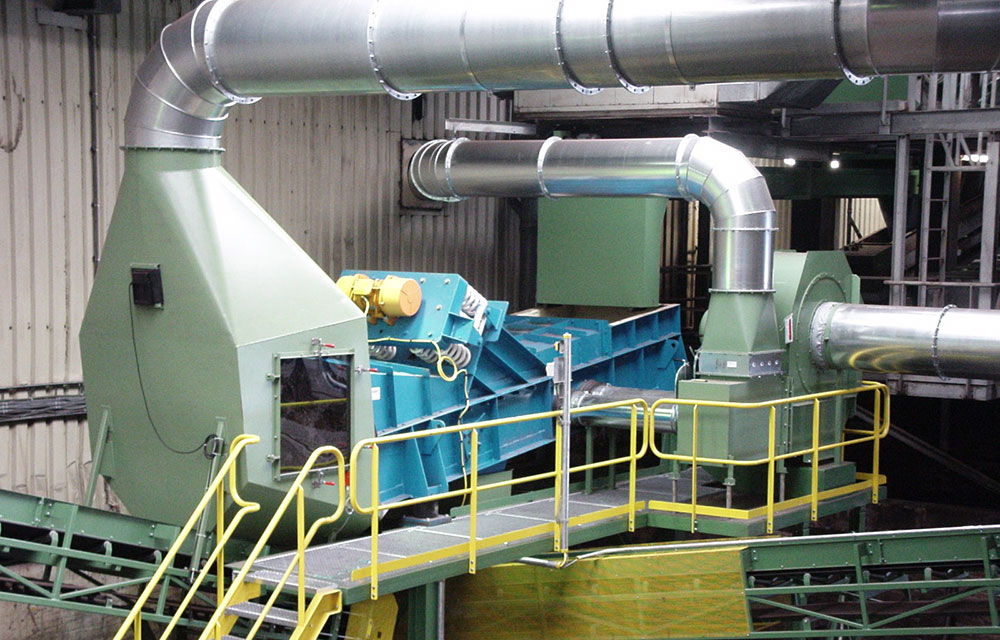

The GK Single Knife DE-STONER® Air Classifier is a fully proven design operating efficiently in various separating applications. This dry classifying system is capable of handling continuous, high volume production.
The completely dry system eliminates water handling and other “wet” system problems, yet can easily handle moist materials. The DE-STONER® Air Classifier combines vibration, fluidization with a high velocity / low pressure air stream to stratify material. Differences in terminal velocity of particles result in heavy items such as glass, metallics, and stones to be removed from lighter items such as paper, plastic and small wood.
The heart of your sorting system
1. Vibratory action moves material, with high density material settling to the bottom of the trough.
2. Fines drop out section (optional) removes smaller particle sizes like broken glass or dirt before reaching air fluidizer.
3. Air fluidizing section blows air through the material and creates turbulence to promote material stratification.
4. Material conveys over the air knife into the air stream. Heavier materials falls through the air stream to the discharge chute.
5. Marginal density material falls on the adjustable landing plate and drops back into discharge chute.
6. Lights materials are carried beyond the landing plate and convey to the end of the DE-STONER®.
7. Ultra light materials like thin film or paper are carried in the air stream to the product discharge zone.
Optional add-on’s include GK’s
Fluff Knife Upgrade or DE-STONER® Drop-Out Boxes.
SUCCESSFUL SEPARATING AND CLASSIFYING APPLICATIONS INCLUDE:
C&D materials
RDF fuel
Glass
Commingled materials
Shredded MSW
Shredded auto scrap fluff
Bio-mass fuel
The DE-STONER® Air Classifier uses air to separate heavy product from light product.
Environmental hazards associated with water separation is thus eliminated along with the inherent mess.
Easily adjustable to obtain varying degrees of separation.
Adaptable to a wide variety of products.
Separates material of different density, or of same density with different particle size.
Virtually jam-proof. No moving parts in contact with material flow.
Low energy demand with low HP motor and GK’s proven Two-Mass design.
Fully isolated design minimizes foundation requirements.
Heavy-duty, built to last construction.
CD-MAX™ RECYCLING SYSTEMS
Nothing processes more than the CD-MAX™ Recycling Systems from General Kinematics. Upsizing from the CD-EXPRESS®, the CD-MAX™ Recycling System provides an additional GK primary screen to handle extreme throughput and maximum tonnage of up to 750 yds. per hour (573 m3 / hr.) or more.
The heart of the CD-MAX™ Recycling System starts with initial separation using General Kinematics proven vibratory FINGER-SCREEN™ Primary Screen technology. From there, material is split into two separate sorting lines, A-Line for the overs and B-Line for the unders. On the A-Line, larger material is manually sorted and recovered. On the B-Line, metals are removed from the unders fraction and fines are removed with GK’s secondary vibratory screen. Additional cleaning of the heavies commodity is achieved with General Kinematics vibratory DE-STONER® Air Classifier. Optional processing includes optical sorting or further fines and lights processing on the C-Line and D-Line. Contact GK’s Recycling specialists for more information.
When you need serious sorting capabilities, go with the MAX… CD-EXPRESS® Recycling Systems from GK.
FINGER-SCREEN™ Primary Screen for primary sorting of material.
Direct loading on to the screen.
Optional apron conveyor for elevating product to pick station.
Recovery of:
Wood. Used as fuel or converted to landscape mulch.
Concrete, bricks, rock and aggregate. Reused as construction fill or recycled into new concrete.
Dirt and fines. Accepted as landfill cover.
Metals, ferrous and nonferrous. Sold as valuable scrap.
Cardboard. One of the higher valued commodities.
Plastics. Depending on the markets.
Future commodities… System flexibility to allow for potential market shifts
Heavy-Duty pick belt and sorting bins.
Low feed system: Low feed system includes vibratory feeder and inclined belt to enable system loading with front end loader or skid steer.
Optional platform canopy: Protect your workers from weather and the elements.
Cross belt with magnet: For automated removal of metallics from waste stream.
BIVI-TEC® FLEXIBLE MAT VIBRATORY SCREENS
There is a growing need to classify manufactured sand, sand and gravel, waste materials, raw materials, semi-finished products, and finished products more effectively. Conventional vibrating screens and trommel screens are very limited when screening materials that cause a build-up on the screen, which results in clogging or blinding of the screen openings.
Developed to screen even the most problematic materials, the bivi-TEC® offers a superior screening solution for Superpave sands, scrap materials, compost, incinerator ash and others. The bivi-TEC® ’s unique dual-vibratory screening process eliminates clogging and blinding of the screen openings to save downtime and increase productivity.
Dual vibration from a single drive is the unique feature of the bivi-TEC® Screen. Two weights, vibrating at the same frequency, move relative to each other which tensions and relaxes the screen mats. The linear momentum of both vibrating movements is adjustable, resulting in open screen surfaces and optimal screening performance.
To assure the most effective screening, high-acceleration forces must be transferred to the feed material. The bivi-TEC® Screen achieves these high forces by dynamically tensioning and relaxing the flexible screen mats using a dual-vibration principle. Enhanced by resonance, one drive can produce two vibration movements. The screen box is accelerated approximately 2g’s while the screen mats can receive up to 50g’s.
Applications, once judged impossible, can now be accomplished with the bivi-TEC® Screen.
THE BIVI-TEC® PROVES TO BE THE BEST MACHINE FOR SCREENING:
Manufactured sands, chips and aglime.
High-moisture materials combined with silt, mud, and clay.
Incinerator ash, trash, waste coal, clay, sand, and slag.
Compost, leafy materials, wood waste, and peat moss. Auto shredder fluff, and shredded tires.
Carpet, wallboard, scrap metal, and roofing shingles.
Fine screening of moist material.
Eliminates blinding and plugging.
Large effective screen area-high capacity.
Effective in all weather conditions.
Highly flexible for varying material requirements.
Long life polyurethane screen mats.
Rugged construction/low maintenance.
Lower energy usage.
Low profile.
Portable test unit available for on-site qualification.
General Kinematics offers bivi-TEC® in partnership with AEI, a licensee of Binder+Co AG.
SECONDARY FINES SCREENS
General Kinematics’ High-Energy Secondary Screens in conjunction with GK’s FINGER-SCREEN™ Primary Screen for resource recycling has proven to be highly successful in a wide range of applications that are prone to process challenges common to other types of screening media.
GK’s Secondary Screens use vibratory action to separate fines from the secondary sort line material. The Two-Mass, low horsepower design has few moving parts for minimal maintenance and maximum uptime. Secondary Screens are heavy-duty with superior wear resistance and durability compared to rotary trommels or star-type screens.
The heart of your sorting system
Increased reliability, higher tonnage capacity and unsurpassed wear resistance make GK’s Secondary Screens the heart of sorting systems around the world. The superior performance of vibratory processing with GK’s unique FINGER-SCREEN™ deck delivers highly efficient separation and classification. The vibratory action spreads material across the deck thereby lowering the bed depth for maximum utilization of the screen area. Tapered finger designs along with unique cam-out surfaces and staggered positions help to prevent material bypass. Separation performance is further enhanced as material freely cascades down the deck with less plugging, trapping, or pegging. The result: continuous, dynamic material flow to enhance and optimize separation and classification.
GK’s Secondary Screen is available in standard sizes with widths up to 72 inches (1800mm) with custom sizes engineered based on your application. Capable of processing high volume production rates up to 450 yards per hour (345 cubic meters per hour).
Vibratory motion evenly spreads material for maximum classification efficiency.
Staggered fingers prevent material bypass.
Cascading material flow helps separate entrapped items.
Unique cam-out surface helps eliminate catching and binding.
Tapered fingers gradually classify and free tangled materials.
Custom-engineered to meet your specific classification requirements.
Modular deck construction permits easy deck replacement.
DUAL KNIFE DE-STONER® AIR KNIFE SEPARATOR
The GK Dual Knife DE-STONER® Air Knife Separator is a fully proven design operating efficiently in many tough separating applications. It is the only dry classifying system capable of handling continuous, high volume production.
The air knife separator is a completely dry system that eliminates water handling and other “wet” system problems, yet can easily handle moist materials.
Vibratory action and high velocity / low pressure air streams fluidize and stratify material according to difference in terminal velocity of particles to remove heavy items such as glass, metallics, stones, dirt, etc.
Vibratory action moves material, with high density material settling to the bottom of the trough.
Optional screening section separates smaller particle sizes for more effective recovery.
Air fluidizing section assists in stratifying material.
High velocity, low pressure air stream is directed through material flow.
Material conveys into air stream. Heavier materials fall through air stream to discharge chute.
Marginal density material is caught on adjustable slope plate and falls back into discharge chute.
Acceptable lighter materials are carried beyond plate and travel to product discharge.
Ultra light or thin film materials like paper and plastic film are removed through air exhaust on stationary hood over discharge.
Optional add-on’s to the air knife separator include GK’s
Fluff Knife Upgrade or DE-STONER® Drop-Out Boxes.
SUCCESSFUL SEPARATING AND CLASSIFYING APPLICATIONS INCLUDE:
Commingled materials C&D materials Shredded MSW Shredded auto scrap fluff Bio-mass fuel RDF fuel
FEATURES:
The DE-STONER® Air Knife Separator uses air instead of water to separate heavy product from light product, eliminating the mess and environmental hazards water separation creates.
Easily adjustable to obtain varying degrees of separation.
Adaptable to a wide variety of products.
Powerful air knife separator separates material of different density, or of same density with different particle size.
Virtually jam-proof. No moving parts in contact with material flow.
Low energy demand with low horsepower motor and GK’s proven two-mass design.
Fully isolated design minimizes foundation requirements.
Heavy-duty, built to last construction.
TRIPLE KNIFE DE-STONER® AIR CLASSIFIER
For the ultimate in air classification for resource recovery, General Kinematics all new Triple Knife DE-STONER® Air Classifier. The Triple Knife DE-STONER® Air Classifier creates up to three distinct material cuts: heavies, lights, and ultralights for maximum processing and maximum profits.
The Triple Knife DE-STONER® Air Classifier combines vibratory action with air streams to effectively separate high volume production rates up to 7,200 cubic feet per hour (200 cubic meters per hour). The high velocity / low-pressure streams fluidize and stratify material according to differential in terminal velocity of particles. Heavy items such as glass, metals, and stones are separated from light items such as fluff, paper, and plastic. The Triple Knife DE-STONER® Air Classifier is available in standard sizes with widths up to 72 inches (1800mm) with custom sizes engineered based on your application.
Vibratory action moves material, causing high density material to settle at the bottom of the flow stream.
Optional screening section separates particles according to size for optimal processing.
Air fluidizing section directs air through the material flow, creates turbulence, and promotes stratification.
Material passes over the air knife, where heavies pass through the air stream into the discharge chute.
Marginal density material is lands on adjustable landing plate and recombines with the heavies.
Light materials are carried beyond the landing plate and discharge off the end of the DE-STONER® Air Classifier.
Ultra light materials like paper and plastic film are propelled to the appropriate landing zone.
Optional add-on’s include GK’s
Fluff Knife Upgrade or DE-STONER® Drop-Out Boxes.
SUCCESSFUL SEPARATING AND CLASSIFYING APPLICATIONS INCLUDE:
C&D materials Glass RDF fuel Commingled materials Shredded MSW ASR Bio-mass fuel
FEATURES：
The DE-STONER® Air Classifier uses air to separate heavy product from light product.
Environmental hazards associated with water separation are eliminated along with the inherent mess.
Easily adjustable to fine tune product separation.
Adaptable to a wide variety of products.
Virtually jam-proof. No moving parts come in contact with material flow.
Low energy demand with low HP motor and GK’s proven Two-Mass Design.
Fully isolated design minimizes foundation requirements.
Heavy-duty, built to last construction.
PARA-MOUNT II® VIBRATING FEEDERS
Proven performance and maintenance free operation make PARA-MOUNT II® Vibrating Feeders the first choice in vibratory feeders for the most demanding applications. PARA-MOUNT II® Vibrating Feeders in either fixed or Variable Force configurations utilize a sub-resonant Two-Mass system. Mass A (the exciter) energizes Mass B (the deck assembly) through precision engineered coil springs. Only small amounts of energy are needed to maintain the natural energy stored and released by the spring system. What this means for you is dynamic response to load surges, increased feed capacity, and exceptional reliability and ease of maintainability. PARA-MOUNT II® Vibrating Feeders are specifically designed to enhance your process.
FEATURES:Low maintenance, maximum uptime for reliable performance.
Simple, extra-heavy duty construction for years of trouble free service.
Two-Mass, sub-resonant natural frequency design is dynamically responsive to automatically maintain constant feed rate for varying load and material changes.
MULTI-STREAM™ RECYCLING SYSTEMS
Capable of processing C&D, MSW or ICI all on one system, the MULTI-STREAM™ Recycling System gives you the flexibility to process different types of material as your incoming waste stream changes. Pre-sorting on the ground is eliminated by incorporating General Kinematics’ primary screening technology to process any off spec contaminates in the waste stream. The MULTI-STREAM™ Recycling System is custom engineered and durable enough to handle any material you throw at it.
FEATURES:Turn-key, entry level or advanced system design.
Integration of General Kinematics’ SXS SCREEN™ Vibrating Screener, DE-STONER® Air Classifier, and other technologies for effective separation of commodities.
Mechanically separate material according to size and density.
Heavy-Duty pick belts and sorting bins.
Fully integrated control system.
Expandable systems as your business grows.
SXS SCREEN® HIGH-STROKE VIBRATORY SCREENS
Revolutionary SIDE BY SIDE Recycling Equipment designed for maximum separation.
For the past thirty years, General Kinematics has researched and developed an innovative line of vibratory screens and equipment used throughout the recycling industry. The latest development from the GK R&D Development Team doubles the stroke of a traditional screen, yet with the same low horsepower requirements as all GK vibratory equipment.
The heart of your sorting system
Specifically designed for wet organic, soft or less dense materials traditionally difficult to screen, the SXS SCREEN® High-Stroke Vibratory Screen meets the challenge. The higher stroke translates to faster travel rates and more energy into the product to provide better separation and screening. General Kinematics always looks to improve our equipment to help the resource recovery industry. With this new and innovative SIDE BY SIDE screen, multi-stream processing is now a reality. A great alternative to star screens, disc screens and trommels, the SXS SCREEN® is easier and safer to work in terms of maintenance, cleaning and accessibility.
Multi-stream capabilities – OCC, MSW, C&I, and/or C&D
Capable of processing 50 tons an hour or more of MSW
Rugged design for contaminated material streams
Low head room requirements for installation
Custom widths to meet your specific separation requirements
Dependable, energy-saving, natural frequency vibratory drive
